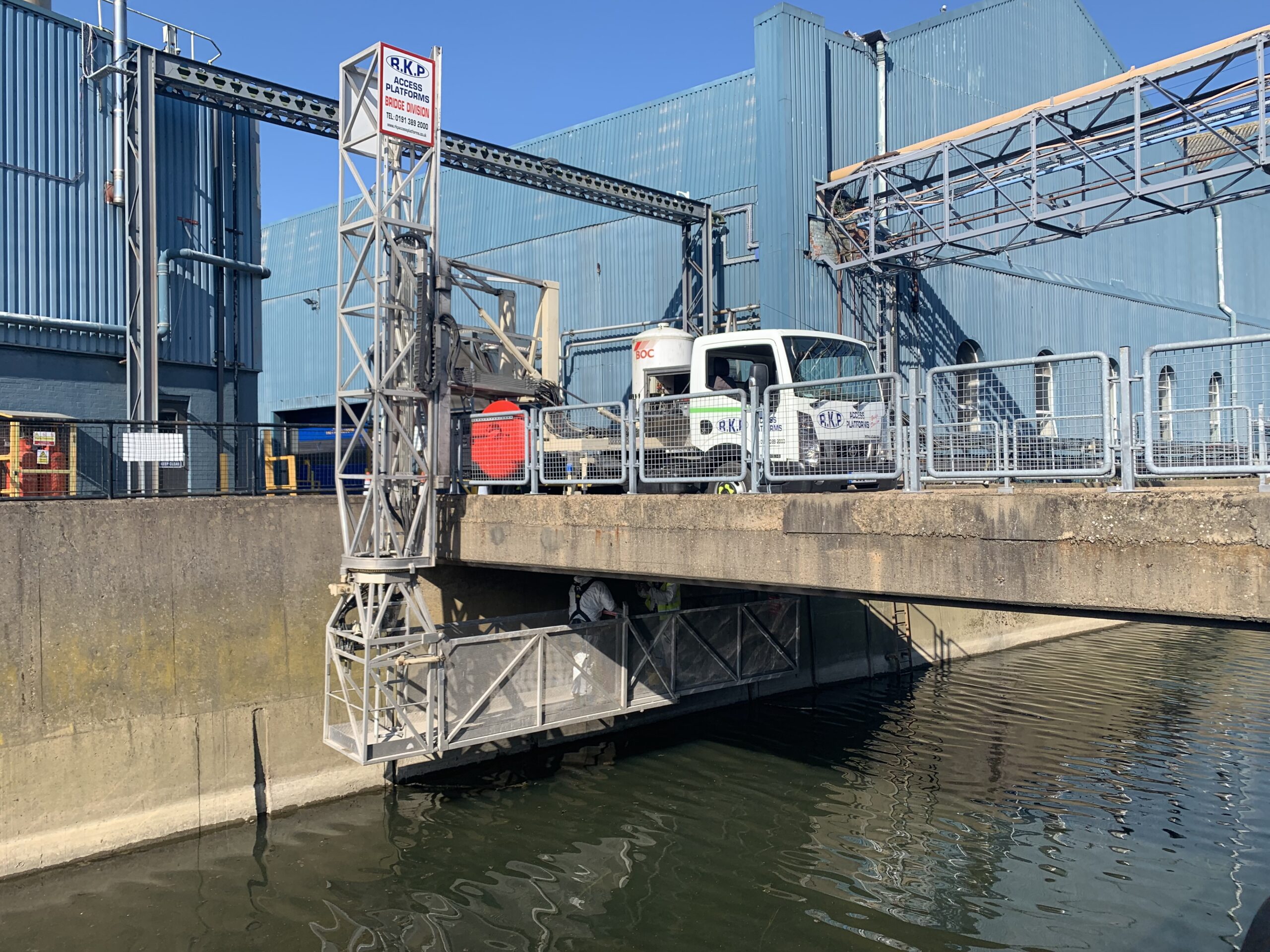

The MOOG MBI 70 provides access to those difficult under bridge inspections. Being truck mounted, it can easily be removed to give access to traffic, below and above ground.
The machine is equipped with a hydraulic creep drive, so can be driven along whilst deployed under the bridge (1 KPH).
TECHNICAL DATA
Horizontal range – 7m
Width of platform – 1m
Space required on bridge – 2.9m
Max load on platform – 400kg
Max load at far end platform – 200kg
Max lowering depth – 5.3m
Rotation of platform – 180°
Stowed (H x W x L) – 3.7, x 2.1m x 8.5m
Weight – 4500kgs
Here at RKP we offer a range of access platform and bridge inspection units to assist our clients. Our machinery allows you too access, inspect and maintain those awkward and hard to reach areas.
